Steel Profile C8 C21 Roof Sheet IBR Design Roll Forming Making Machine
Machine Component
| Name | NO. | Unit |
| 1.Decoiler | 1 | set |
| 2.Forming machine | 1 | set |
| 3.Cutting device | 1 | set |
| 4.PLC control box | 1 | set |
| 5.Hydraulic pump station | 1 | set |
| 6.Production support table | 1 | set |
Specifications
| The total length of the equipment | Length 6200mm width 1300mm height 1200mm |
| Equipment weight | 3 tons |
| The motor power | Motor 4Kw pump station 4Kw working voltage 380V or customized |
| Production speed | 10--18 m/min |
| The transmission way | 1 inch chain drive |
| rack | Large frame: 350H section steel |
| shaft | 1064:11 row axis 1100:13 row axis diameter 70 mm solid shaft |
| The thickness of the plate | 14 mm |
| Set of | Galvanized pipe finishing, electrostatic spraying |
| Wheel material | 45# steel hard chrome plating |

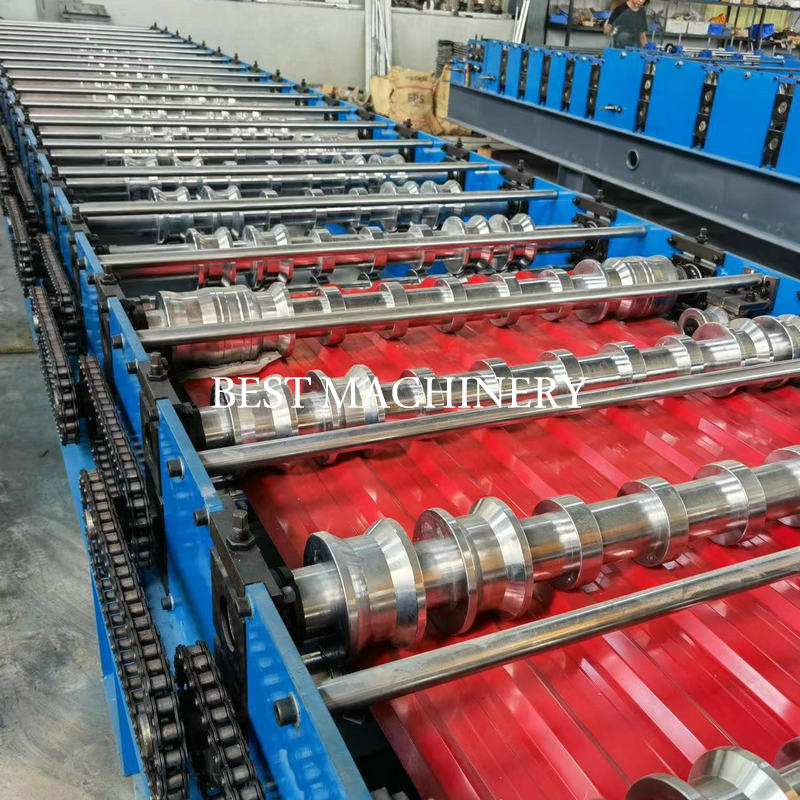

| The molding part | Divided into precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient, fast. |
| Numerical control system | Easy control king, letter letter press button screen, counter, |
| shear | Iron plate welding frame, hydraulic cylinder automatic shear, hydraulic cylinder automatic pressure |
| In the thickness of the plate | 0.3 mm - 0.8 mm |
| Into the plate width | 1250 mm |
| accessories | Two sets of feeding rack, vulnerable parts |
| Warranty period | 12 months |
Uncoiler
Loading capacity: 5T
Inner diameter: 470-530mm
Steel coil width :914, 1000, 1220, 1250 mm.According to your actual drawing.
Working speed: 0-15m/min, adjustable
Feeding table
It is used to control the width and position of the steel sheet.
The sheet is guided into the machine with correct position ,to make sure the panel is neat and parallel
Control cabinet
Suitable power : 380V, 50Hz, 3 phase. Or according to your need.
Feature: The whole process is automatically controlled by the computer. In this way, you can ensure the accuracy and easy work
Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sales service
Technical Support
Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.
